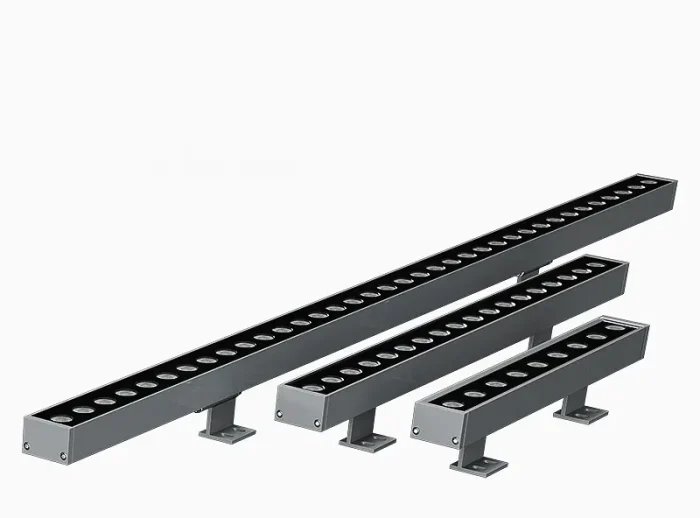

RGB Exterior Wall Washer Lights Fixtures CREE DMX 18W DC24V

Light projecting Building facade design idea for outdoor LED high power flood lights

Lamp Item No.: LE-XQ43C

Dmx RGB Exterior Wall Washer Lights apply to outdoor facade illumination, sculptures and locations which require emphatic lighting energy saving replacements for metal halide and quartz halogen fixtures,containing an integral listed driver.
Material: Aluminum alloy housing, tempered glass, stainless steel screw.
Surface finish: Akzo Nobel powder coating, outdoor grade, anti-UV.
Effects: RGB color-changing, flowing, chasing, 256 grades brightness.

Various mounting options for exterior wall washer lights, plus different beam spread, optical lens ,and anti-glare accessories, make it an ideal choice for lighting designers.
There are various lighting control systems to choose, such as DMX512 control and so on.
Use different lighting effects depending on the project, such as: static color, RGB color change, flowing, chasing, dynamic display etc..

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc. According to your design and manufacture of molds.

ISO9001:2008 Quality control system
Complete & strict quality control system from incoming material quality control, All products must accept 5 kinds of Checks during production, raw material check, Lights beads check, aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.
Warranty: 3 years warranty for quality;

Product Data
More Information

Weight	1.5 kg	Dimensions	1000 × 43 × 86 cm
Lighting projection effect	Floodlights, Projector, Wallwashers	Light distribution	Flood, Symmetrical spot, Wallwash
Light material	Aluminum alloy housing, Tempered glass	Input voltage (V)	DC24V(RGB), DC24V(Single color)
LED lights power (W)	18W, 24W	Installation method	Surface mounted
Average life	50000 Hours	Beam types	Wash
Certification	CE mark, Rohs mark	Cable	Cable 0.15m of plug, Cable 0.5 m without plug
Control method	DMX512	Color rendering index (CRI)	Ra>85
Dimmable	0-10V Dimmable	LED light IP rating	IP66
LED light source	CREE 1W high power, OSRAM 1W high power	Light source color	Amber, Blue, CW(cold white), Green, Red, RGB(Multi Color), W (4000K-4500K), WW(Warm white)
Luminous flux (LM)	115-120LM/W	Number of LED	18pcs, 24pcs
Power factor	0.98	Protection class (IEC)	III (Safety class III)
Working temperature (°C)	-30 °C ~ +45°C	Driver included	Yes

Wall washer lighting default size: 22mm x 62mm x1000mm
Size can be customized in large quantities

FEATURES OF PRODUCT

leled lighting led linear length size for leled lighting

Customized led lights lengths

Customized led lights of different lengths according to the project

High standard light distribution, good light effect

Choose high-quality PMMA lens and imported LED, Lens with good light efficiency is preferred.

dmx512 dali pwm control1 fo leled lighting

Various control modes to choose from

LED linear lighting has a variety of control mode options, DALI, DMX512, 0-10V PWM Dimming.

IMAGE GALLERY

Building wall lighting design for super LED high power flood lights

Building wall lighting design for super LED outdoor wallwasher lights
