High Power Led Spotlight Outdoor 36W For Building Facade Projector

outdoor led linear light & rigid led linear light bars design idea

Lamp Item No.: LE-YTS175X

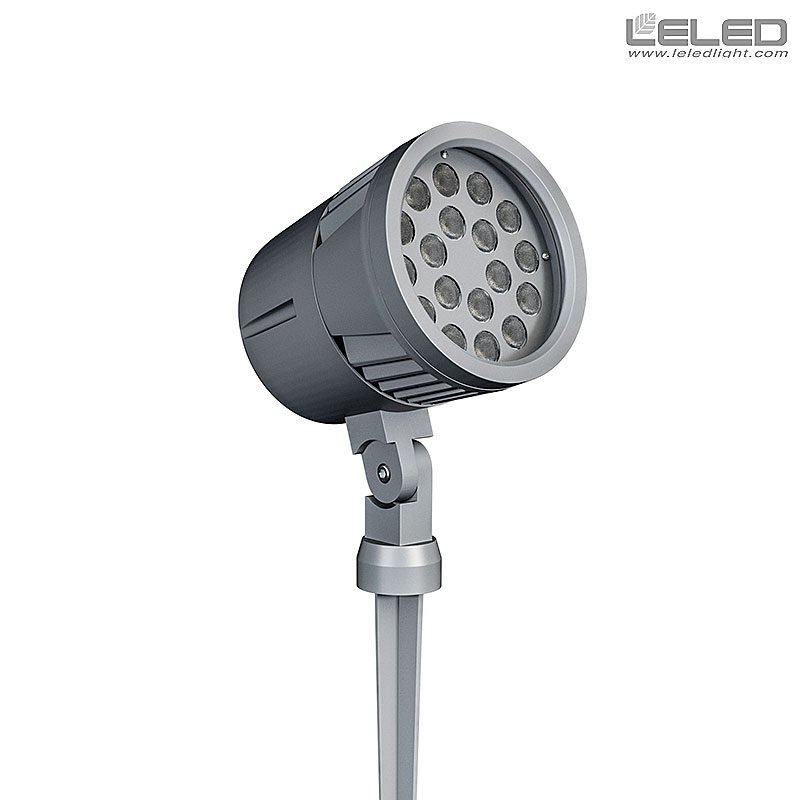

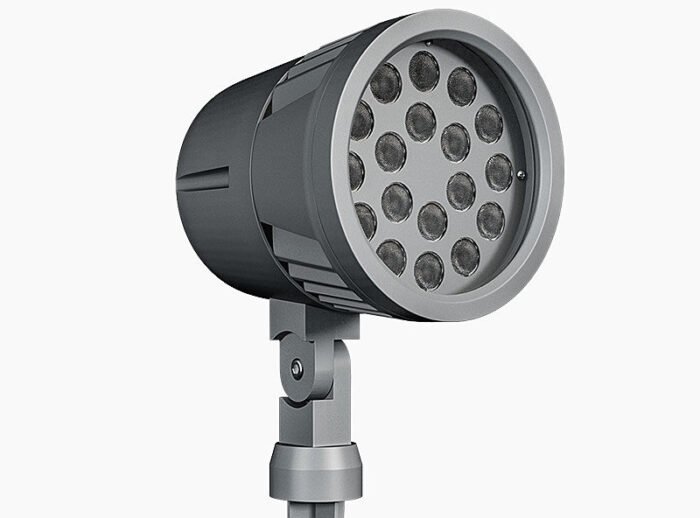

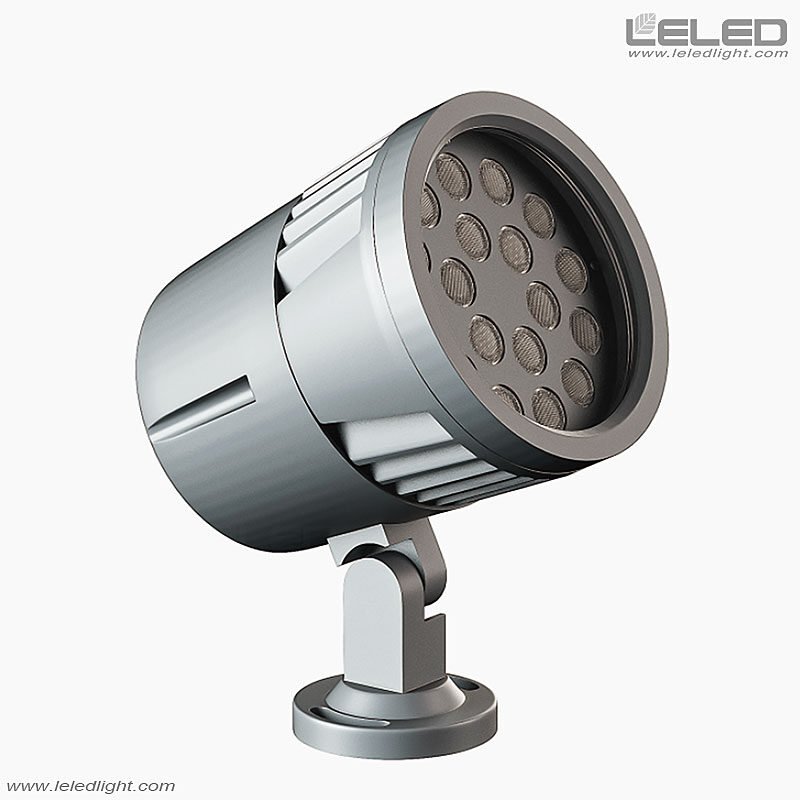

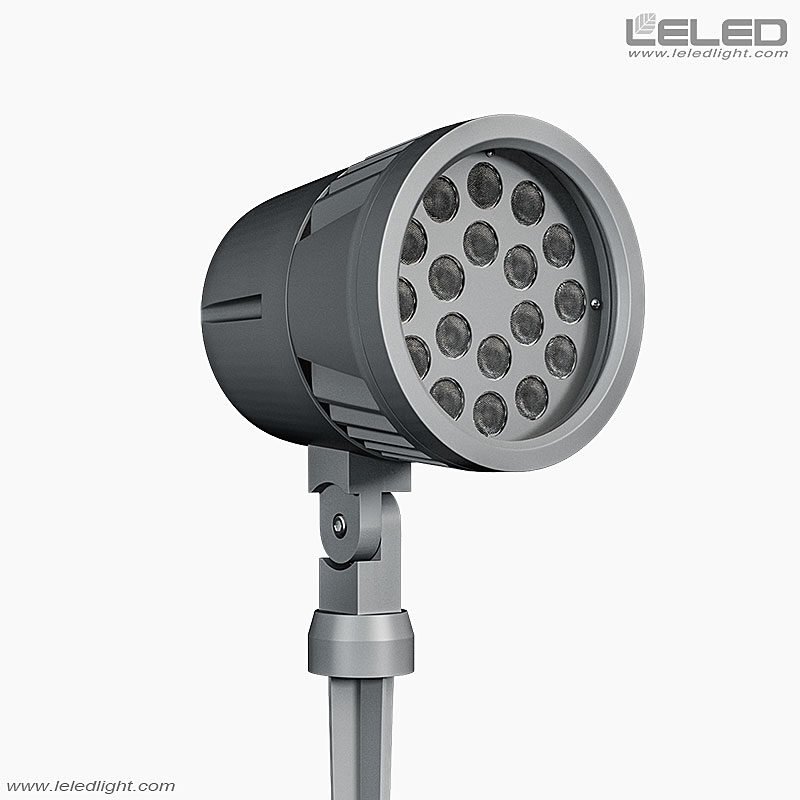

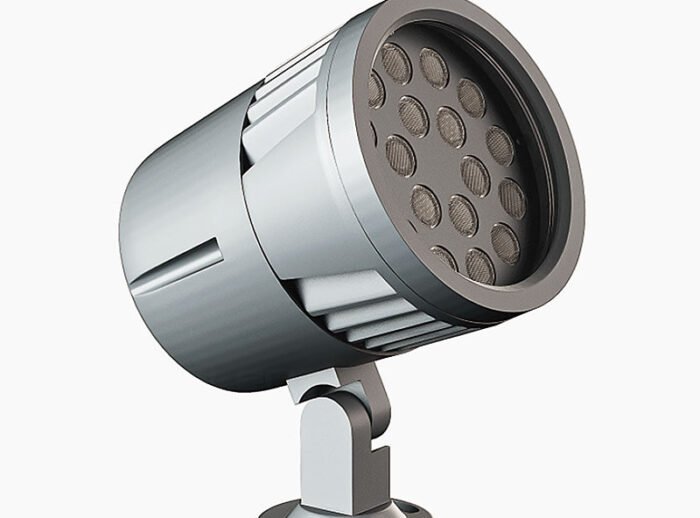

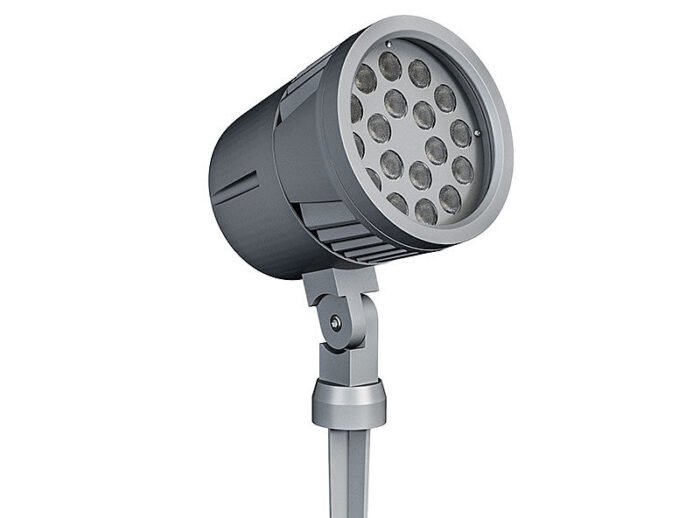

High power LED flood lights are efficient, Apply to building facade, Sculptures and locations which require emphatic lighting energy saving replacements for metal halide and quartz halogen fixtures, containing an integral listed driver.
The fixtures can mount at a broad range of angles with ayoke style arm.

Material: Aluminum alloy housing, tempered glass, stainless steel screw.

Surface finish: Akzo Nobel powder coating, outdoor grade, anti-UV.

Effects: RGB color-changing, flowing, chasing, 256 grades brightness.

LELED Lighting is a excellent manufacturer of Outdoor LED lights products in China.

We only provide high quality outdoor LED light with reasonable price, Factory direct sales with competitive price.
Complete & strict quality control system from incoming material quality control, All outdoor LED flood lights must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc. According to your design and manufacture of molds.

Various mounting options for high power LED flood lights, plus different beam spread, optical lens ,and anti-glare accessories, make it an ideal choice for lighting designers.
There are various lighting control systems to choose, such as DMX512 control and so on.
Use different lighting effects depending on the project, such as: static color, RGB color change, flowing, chasing, dynamic display etc..

Product Data
More Information

Weight	4.5 kg	Dimensions	235 × 175 × 180 cm
Lighting projection effect	Floodlights, Projector, Wallwashers	Light distribution	Flood, Narrow Beam, Narrow spot, Wallwash, Wide beam
Light material	Die-casting aluminum, Tempered glass	Average life	50000 Hours
Beam angle (∠)	3, 8, 10, 15, 25, 40, 60 degree	Cable	Cable 0.15m of plug, Cable 0.5 m without plug
Beam types	Spot	Certification	CE mark, Rohs mark
Color rendering index (CRI)	Ra>85	Control method	DALI, DMX512
Dimmable	0-10V Dimmable	Driver included	Yes
Input voltage (V)	AC100V-AC245V(Single color), AC277V (Customize North America), DC24V(RGB), DC24V(Single color)	Installation method	Surface mounted
LED light IP rating	IP66	LED light source	CREE 1~3W High Power, OSRAM 1W high power
LED lights power (W)	24W, 36W	Number of LED	24pcs, 36pcs
Protection class (IEC)	I (Safety class I), III (Safety class III)	Working temperature (°C)	-30 °C ~ +45°C
