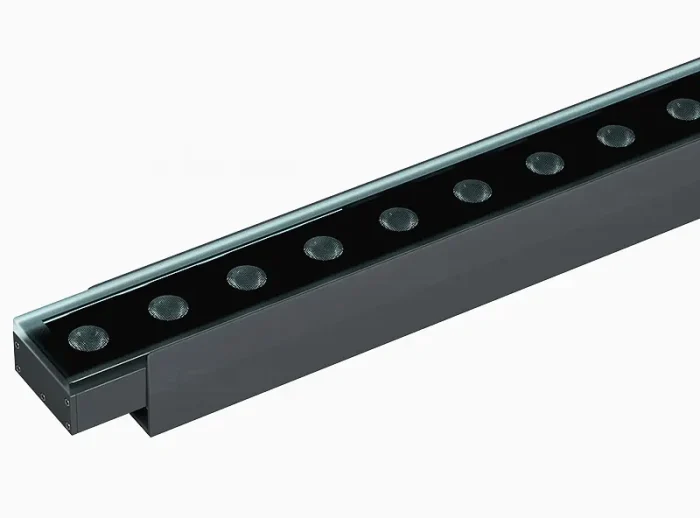

High quality outdoor led linear inground uplight with projector washer building wall

More

Lamp Item No.: LE-MDL58P

Outdoor led linear inground uplight in various size for installation in paved ground surfaces both indoor and outdoor, made of aluminum, are mounted in a recessed housing on a foundation that absorbs the pressure loads.
The lights can be driven over by vehicles with pneumatic tyres.

  • making recessed linear projection landscape lighting perfect for building facade, illuminating pathways, flower beds, trees, fences, driveways, stone walls, flag, doorway, decks, steps, paths, walls and more.
  • Long lifetime in extreme conditions: High strength aluminum housing, Thickened tempered glass, IP67 wateproof, LED’s work well in rain, snow, and sleet.
  • Use High power Cree/Osram LED chip, with the professional optical lens, The lamp illumination distance is far, good quality, uniform color, higher brightness.

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

Light distribution

Flood, Grazing light, Narrow Beam, Narrow spot, Wallwash, Wide beam

 Lighting projection effect

Floodlights, Projector, Wallwashers
Number of LED

24pcs, 36pcs

 Working temperature (°C)

-30 °C ~ +45°C
Average life

50000 Hours

 Beam angle (∠)

3, 8, 10, 15, 25, 40, 60, 10X40, 10X60, 25X45 degree
Cable

Cable 0.15m of plug, Cable 0.5 m without plug

 Color rendering index (CRI)

Ra>85
Input voltage (V)

DC24V

 Control method

0-10V, PWM, DMX512
IK rating

IK10

 Installation method

Recessed installation, Recessed floor, Recessed wall
LED light IP rating

IP67

 LED lights power (W)

24W, 36W, 48W
Driver included

Yes

 Beam types

Spot, Wash
Light material

Aluminum alloy housing, Tempered glass

Grazing light is a way for lights to projector vertically into a facade wall, In this way, The distance between the led lights and the wall is relatively close, Usually the distance between the lamp and the wall is not more than 30cm, Usually the light of the luminaire projected onto the wall that is not smooth，The texture used to highlight the wall, Such as stone wall, brick wall, cement wall and so on. General wash wall lighting can do this kind of lighting effect

Wall washer is usually a general term for illuminating walls, There is no distance limit to the distance of the luminaires from the wall, Lights are usually light effects in the shape of lines. If you need to project light from a distance,The luminaires are far from the wall. If the projection distance is close, The lamp is close to the wall. We can choose different lighting angles and luminaire power according to the night environment. Our LED light can also change the lens size and lamp size of the luminaire, and select different LED chip, Meet different light projection distances.

Grazing light and wall washer are not much different, Just the distance of the lamp from the wall, It’s just that grazing light is closer to the wall, highlighting the texture of the wall.

Led linear inground uplight default size: 1000mm X 58mm X 48mm
Hole size: 1000mm X 58mm

projecting wall design for LED high power projector inground light
