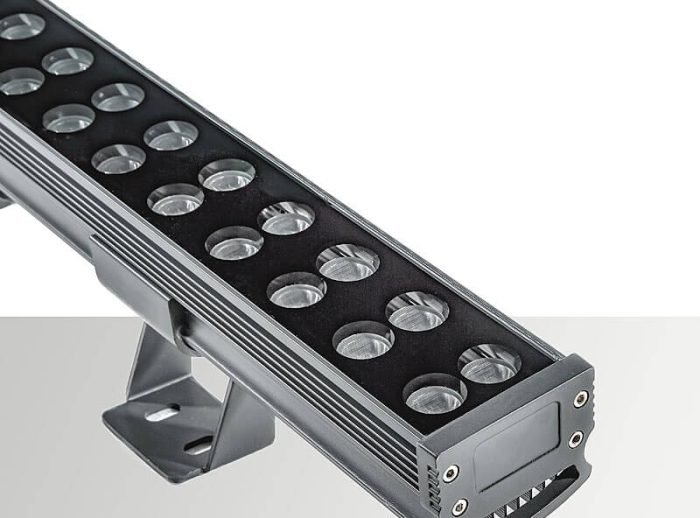

LED Wall Washers Lighting 72W Outdoor IP65 RGB

More
Light projecting Building facade wall design idea for outdoor LED high power wall washer lights

Lamp Item No.: LE-XQ60-36/18

LED wall washers lighting 72w are efficient, Apply to building facade, sculptures and locations which require emphatic lighting energy saving replacements for metal halide and quartz halogen fixtures,containing an integral listed driver.
The fixtures can mount at a broad range of angles with ayoke style arm.
Material: Aluminum alloy housing, tempered glass, stainless steel screw. Surface finish: Akzo Nobel powder coating, outdoor grade, anti-UV.
Effects: RGB color-changing, flowing, chasing, 256 grades brightness.
A variety of color temperature choose (1700K-6500K).
RGBW 4 in 1 color changing, narrow beam angle projecting.

LELED Lighting is a excellent manufacturer of Outdoor LED lights products in China.

We only provide high quality outdoor LED light with reasonable price, Factory direct sales with competitive price.
Complete & strict quality control system from incoming material quality control, All outdoor LED wall washer lights must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

  •  Application: Outdoor facade illumination.
  • Housing is polyester TGIC powder-coated for long durability, and is rust and corrosion proof, IP65-rated, and sealed to be dirt and insect proof.
  • Superior light quality, Cree LEDs.
  • DMX512 controller,static and dynamic lighting effects can be designed.
  • Input voltage:  DC24V
Weight 7 kg Dimensions 1000 × 80 × 125 cm
Lighting projection effect

Floodlights, Projector, Wallwashers

 Light distribution

Asymmetrical Flood, Flood, Narrow spot, Symmetrical spot, Wallwash
LED lights power (W)

36W, 48W, 54W, 60W, 72W

 Input voltage (V)

AC100V-AC245V(Single color), AC277V (Customize North America), DC24V(RGB), DC24V(Single color)
Number of LED

36pcs, 48pcs, 54pcs, 60pcs, 72pcs

 Power factor

0.98
Average life

50000 Hours

 Beam angle (∠)

3, 8, 10, 15, 25, 40, 60, 10X40, 10X60, 25X45 degree
Cable

Cable 0.15m of plug, Cable 0.5 m without plug

 Certification

CE mark, Rohs mark
Color rendering index (CRI)

Ra>85

 Control method

DALI, DMX512
LED light source

CREE 1~3W High Power, OSRAM 1W high power

 Installation method

Surface mounted
Light material

Aluminum alloy housing, Tempered glass

 Light source color

Amber, Blue, CW(cold white), Green, Red, RGB(Multi Color), RGBW(Color Changing), W (4000K-4500K), WW(Warm white)
Protection class (IEC)

I (Safety class I), III (Safety class III)

 Working temperature (°C)

-30 °C ~ +45°C

LED Wall Washers Lighting Default Size: 1000mm X 80mm X 125mm

Building wall lighting design for super LED high power wallwasher lights
