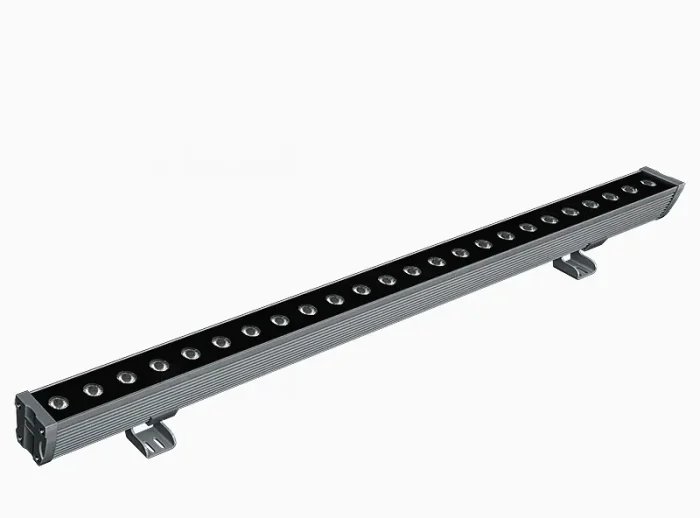

RGBW Linear LED Wall Washer Fixtures Lights CREE AC220V

More
Light projecting Building facade design idea for outdoor LED high power wall washer lights

Lamp Item No.: LE-XQC-24

LED surface mount wall wash fixtures apply to outdoor facade illumination, sculptures and locations which require emphatic lighting energy saving replacements for metal halide and quartz halogen fixtures,containing an integral listed driver.

New heat releasing structure, a unique heat releasing technology. 1-2 times larger cooling area than the traditional square floodlight.

Revolving bracket， it is convenient to adjust the projecting angles. Can be customed made the bracket according to your requirement.

Use Cree/Osram LED chip, with the professional optical lens, good quality, uniform color, higher brightness.

High strength AD12 dia-casting aluminum housing, tempered glasses. Akzo Nobel powder coating surface, outdoor grade, anti-UV.

High standard aging test. Waterproof requirements are all 0.5M deep water test for 8 hours. IP grade all are above IP65.

Effects: RGB color-changing, flowing, chasing, 256 grades brightness.

A variety of color temperature choose (1700K-6500K).

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

Complete & strict quality control system from incoming material quality control;

All outdoor LED wall washer fixtures must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.

Weight 3 kg Dimensions 1000 × 40 × 90 cm
Lighting projection effect

Floodlights, Projector, Wallwashers

 Light distribution

Flood, Symmetrical spot, Wallwash
Light material

Aluminum alloy housing, Tempered glass

 Installation method

Surface mounted
Average life

50000 Hours

 Certification

CE mark, Rohs mark
Color rendering index (CRI)

Ra>85

 Control method

DALI, DMX512
Cable

Cable 0.15m of plug, Cable 0.5 m without plug

 Dimmable

0-10V Dimmable
Input voltage (V)

AC100V-AC245V(Single color), AC277V (Customize North America), DC24V(RGB), DC24V(Single color)

 Driver included

Yes
LED light IP rating

IP66

 LED light source

CREE 1W high power, OSRAM 1W high power
LED lights power (W)

18W, 24W

 Light source color

Amber, Blue, CW(cold white), Green, Red, RGB(Multi Color), RGBW(Color Changing), W (4000K-4500K), WW(Warm white)
Working temperature (°C)

-30 °C ~ +45°C

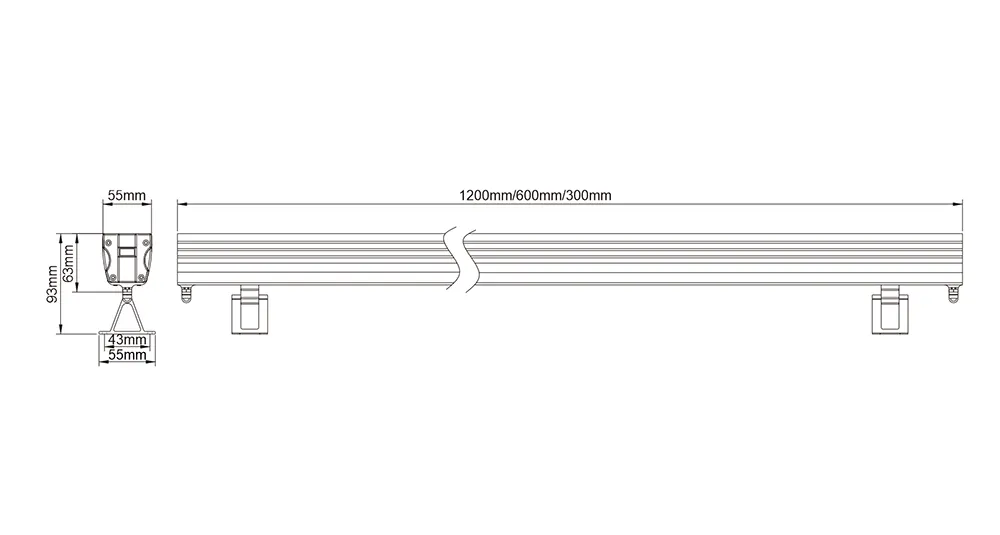

Linear LED Wall Washer Fixtures Default Size: 1000mm(500mm,300mm)X55mmX93mm; Large quantity can be customized.

Light projecting Building facade design idea for outdoor LED high power wall washer lights
