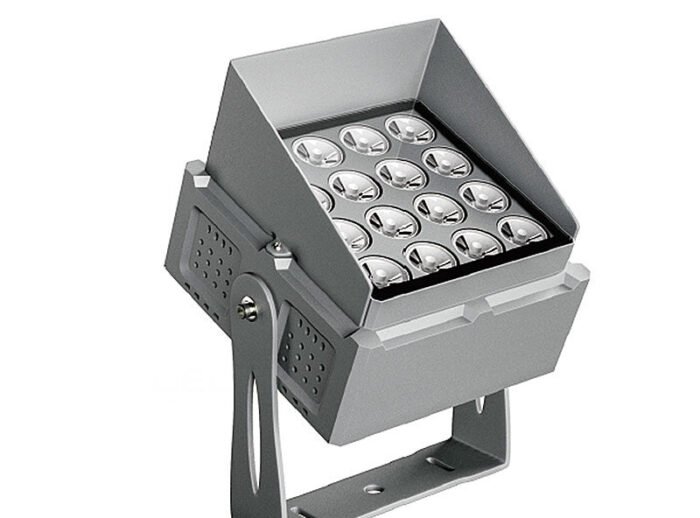

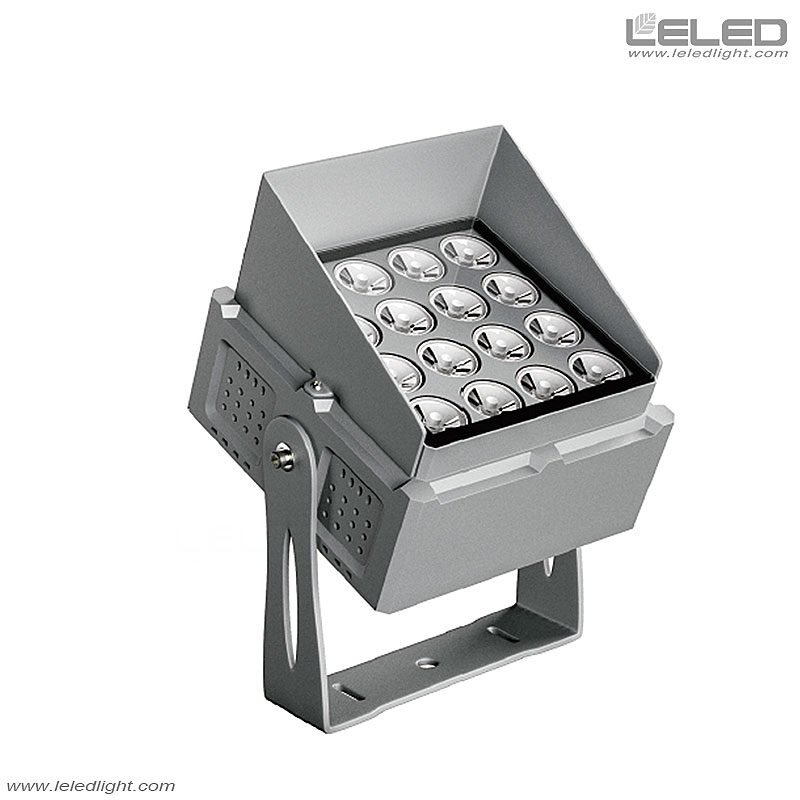

Color Changing Led Outdoor Spotlight High Power For Projecting Architecture

More
lighting projector iron bridge design idea for super LED high power projector flood lights

Lamp Item No.: LE-FTF175-18/24

Superior light quality,Cree or Osram LEDs, Flood outdoor led light are efficient.
Apply to building facade projecting, sculptures and locations which require emphatic lighting energy saving replacements for metal halide and quartz halogen fixtures,containing an integral listed driver.
Revolving bracket, It is convenient to adjust the projecting angles. Can be customed made the bracket according to your requirement.
Material: Aluminum alloy housing, tempered glass, stainless steel screw.
High strength AD12 dia-casting aluminum housing, tempered glasses. Akzo Nobel powder coating surface, outdoor grade, anti-UV.
Effects: RGB color-changing, flowing, chasing, 256 grades brightness.
High standard aging test. Waterproof requirements are all 0.5M deep water test for 8 hours. IP grade all are above IP65.
A variety of color temperature choose (1700K-6500K).

Product FAQ

Samples within 7 working days, mass production time needs 2-3 weeks for order quantity more than.

Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

we also offer customized service.if you have any question,please feel free to contact us.

Provide to your needs and customized to suit different customers, Including color, size, material, etc.  According to your design and manufacture of molds.

LELED Lighting is a excellent manufacturer of Outdoor LED flood lights & led projector lamp in China.

We only provide high quality outdoor LED lights with reasonable price, Factory direct sales with competitive price.
Complete & strict quality control system from incoming material quality control, All outdoor LED flood lights must accept accept 5 kinds of checks during production, raw material check, Lights beads check, Aluminum plate check, Power supply check and the finished products need to pass 48 hours aging test.

Weight 3 kg Dimensions 237 × 178 × 127 cm
Lighting projection effect

Floodlights, Projector

 Light distribution

Asymmetrical Flood, Flood, Narrow spot, Symmetrical spot
Light material

Die-casting aluminum, Tempered glass

 Beam angle (∠)

3, 8, 10, 15, 25, 40, 60 degree
Average life

50000 Hours

 Number of LED

18pcs, 24pcs
LED lights power (W)

18W, 24W, 36W, 48W

 Certification

CE mark, Rohs mark
Control method

DALI, DMX512

 Dimmable

0-10V Dimmable
Input voltage (V)

AC100V-AC245V(Single color), AC277V (Customize North America), DC24V(RGB), DC24V(Single color)

 Installation method

Surface mounted
LED light IP rating

IP66

 Light source color

Amber, Blue, CW(cold white), Green, Red, RGB(Multi Color), RGBW(Color Changing), W (4000K-4500K), WW(Warm white)
Luminous flux (LM)

1800-2150LM, 3100-3680LM

 Power factor

0.98
Working temperature (°C)

-30 °C ~ +45°C

Outdoor LED Flood Light default size: 237mm x 178mm x157mm Size can be customized in large quantities

lighting projector bridge design idea for super LED high power projector lights
lighting projector iron bridge design idea for super LED high power projector flood lights
